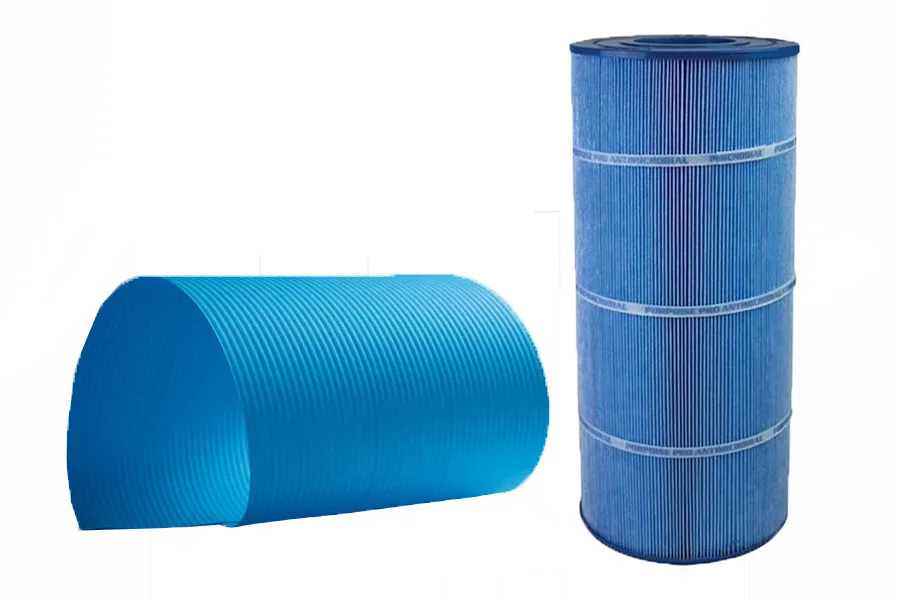

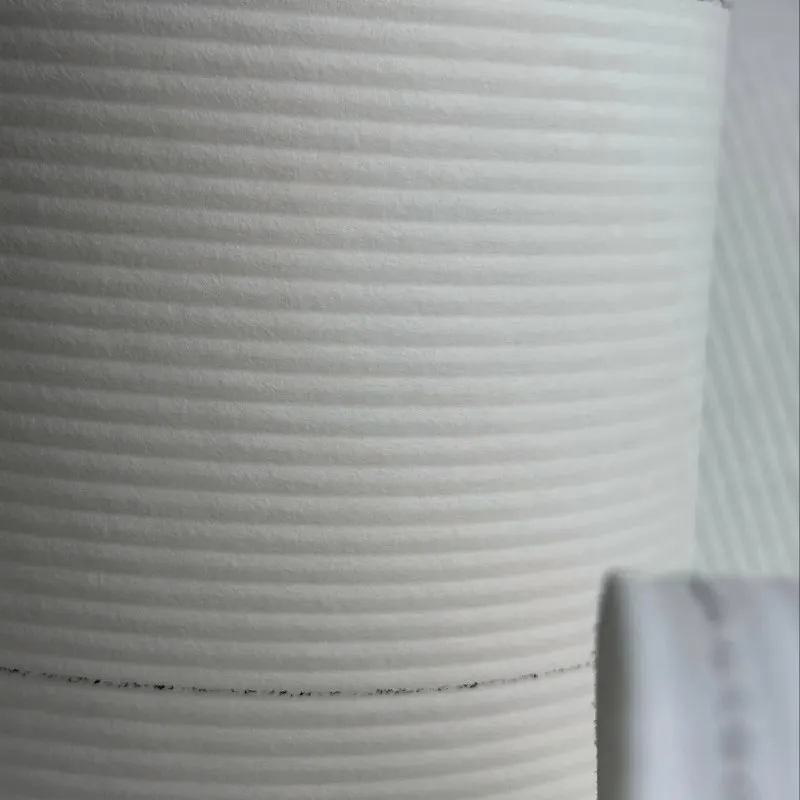

Nanofiber Air Filter Paper
High accuracy filtration
High efficiency in filtration
Low resistance pressure falling
High dust capacity
Long lifte
High efficiency in energy-conservation
Easy to blow back


High accuracy filtration
High efficiency in filtration
Low resistance pressure falling
High dust capacity
Long lifte
High efficiency in energy-conservation
Easy to blow back
Nanofiber and wood pulp paper combined with high strength, small pore size, can achieve high efficiency and lower pressure drop, easy back blowing dust removal, widely used in commercial vehicle intake system, gas turbine, air compressor , industrial dust removal, heavy duty truck filter and other fields.
|
Модел |
Gram weight |
Дебљина |
Corrugation depth |
Пропустљивост ваздуха |
Maximum hole diameter |
Чврстоћа на пуцање |
Filter efficiency |
Resistance |
Antiflaming |
|
Ф7 |
120±5 |
0.65±0.10 |
0.35±0.10 |
200±50 |
≤55 |
240±70 |
≥35 |
≤80 |
- |
|
Ф8 |
125±5 |
0.68±0.10 |
0.38±0.10 |
350±50 |
≤90 |
240±70 |
≥55 |
≤50 |
- |
|
Ф9 |
133±5 |
0.65±0.10 |
0.30±0.10 |
180±50 |
≤65 |
240±70 |
≥70 |
≤90 |
DIN 53438-3 F1 |
|
E11 |
133±5 |
0.65±0.10 |
0.30±0.10 |
120±50 |
≤65 |
240±70 |
≥95 |
≤110 |
- |
|
Antistatic F9 |
140±5 |
0.30 |
0.25 |
178 |
63 |
250 |
F9/EN7 79 |
10^5 |
F1/DIN53438 |
We advanced filtration media including nanofiber, melt-blown, and composite materials. Available in multiple efficiency grades (G3–H14), our media are optimized for customized OEM integration across air purification, electronics, pharmaceutical, and energy sectors.
