  • F5 Ceiling filter Roof filter for spray booth

    Material: 100% polyester tolalar

    Filtrlash klassi: F5/M5 (En779) EU5 (Eurovent)

    Og'irligi: 550g/sqm 600g/sqm

    Maksimal harorat: 120 ℃

    Hozir murojaat qiling
    PDF yuklab olish
    Mahsulot tavsifi

    O'rta ta'sirli filtrli paxta sinish qarshiligining nozik tolali qatlamini oshiradi. va tola qatlamining zichligi havo oqimi yo'nalishi bo'ylab asta-sekin o'sib boradi. Uzilish kuchi yuqori va qarshilik kichik.

    Püskürtme yoki cho'ktirishdan so'ng, yuqori haroratli kukun tolaning sinishi va to'kilmasligi uchun muhitga to'liq kiradi. Shu bilan birga, chang zarralari o'tolmaydi. Asosiy korpus uchuvchi erituvchidan iborat va organosilikonni o'z ichiga olmaydi.

    Yuqori paxta polyester panjara bilan qoplangan va havo oqimining bir xil taqsimlanishiga yo'l qo'yadi. Asosan avtomobil purkagichida, bo'yoq ustaxonasida, yig'ish ustaxonasi ship paxtasida ishlatiladi. Haroratga chidamliligi taxminan 120 ℃, namlik qarshiligi kuchli va namlik qarshiligi 100% nisbiy namlik.

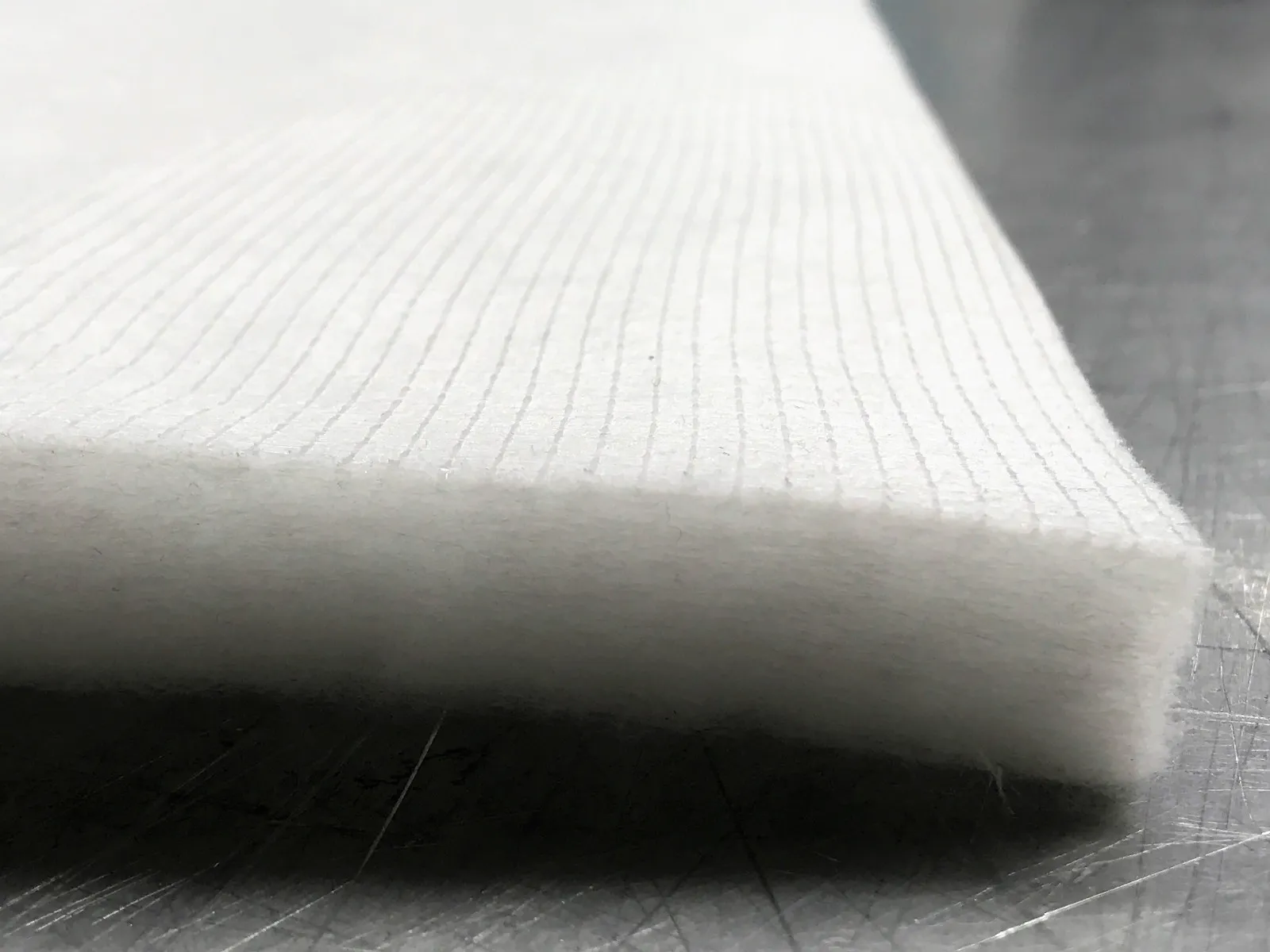

     M5/F5/V600 purkagich kabinasi shiftini qabul qilish filtri yopishqoq orqa tomoni bilan



    Mahsulotning texnik ma'lumotlari



    Type

    Qalinligi

    mm

     Havo tezligi
    Xonim

    Dastlabki qarshilik

    Xo'sh

    Yakuniy qarshilik

    Xo'sh

    Samaradorlik

    Chang quvvati

    g/sqm

    Termal qarshilik

    Namlik

    100%

    F5

    20

    0.3-0.6

    35

    250

    98%

    438

    120 ℃

    100

    F5

    25

    0.3-0.6

    35

    250

    98%

    500

    120 ℃

    100

    F5 Ceiling filter Roof filter for spray booth
    F5 Ceiling filter Roof filter for spray booth
    F5 Ceiling filter Roof filter for spray booth
    F5 Ceiling filter Roof filter for spray booth
  • F5 Ceiling filter Roof filter for spray booth
  • F5 Ceiling filter Roof filter for spray booth
  • F5 Ceiling filter Roof filter for spray booth
  • F5 Ceiling filter Roof filter for spray booth
  • F5 Ceiling filter Roof filter for spray booth

    Ceiling filter  Roof filter

    "Arresters" Series Synthetic Fiber Filter Media

    High Dust holding capacity Low pressure drop

    CC-600G/EU5

    FF-560GX/F5

    Quality: En779: 2002

    Hozir murojaat qiling
    PDF yuklab olish
    Mahsulot tavsifi

    F5 Ceiling filter Roof filter for spray booth

    Specially designed for terminal filtration of auto spray-paint booth as final filtration barrier to filter the particles which will damage spray-paint quality out from the intake air stream.

    High dust holding capacity, low pressure drop and economical.

    Full soaking an adhesive and sticky coating effectively prevent any release of fibers and prohibit of particles larger than 10microns; Constructed from selected high-performance synthetic fiber by progressive density multi-layer technique.

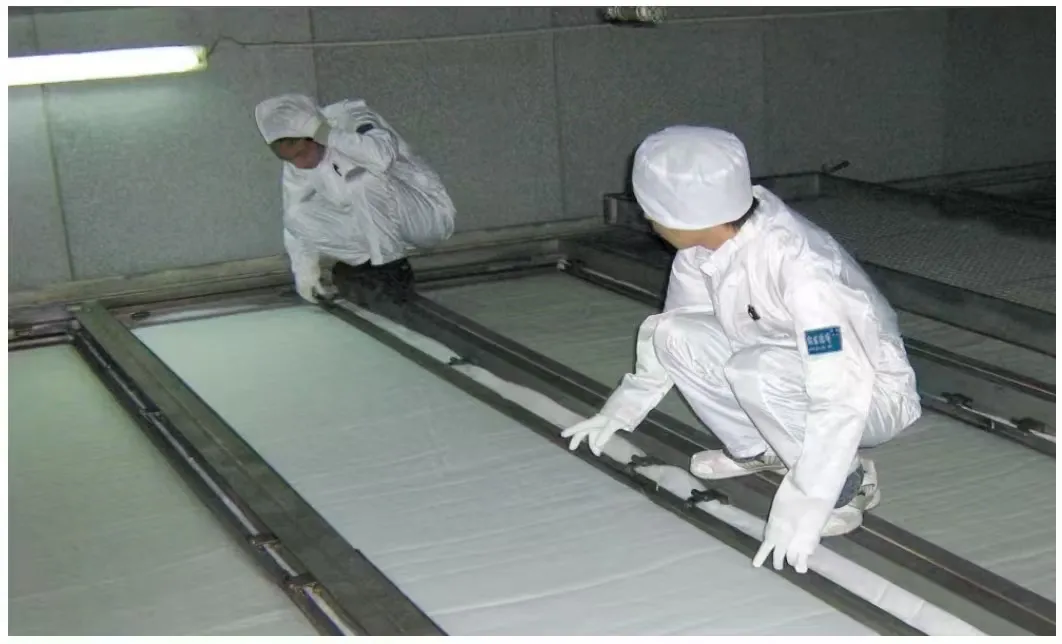

    Ensures the air throughout the out assembly shops and automatic refinishing factory’s spray-paint booth evenly spreads, forming laminar air flow.

    Conform to the fire-proofing classification standards of European Union DIN53438-F1and American UL900-Class 1.

    Quality conforms to EN779 standard.

    Resistant to chemical impacts of such as chemical solvents and acid smog.

    Adhesive and enhanced rigidity ensure high dust holding capacity, robust construction and resistance to squeezing.

    The air exit side of filter media is particularly compact and smooth.

    Texnik ma'lumotlar

    F5- 560G
    Air Velocity: 0.3 Xonim
    Qalinligi  20mm
    Initial Resistance: 25pa
    Final Resistance: 450pa
    Efficiency: 98%
    Chang Holding: 500 g/sqm
    Max Temperature: 120C
    Wet 100%
    Filtrlash Class: F5 (DIN 24185)
    Flame Resistance: F-1(DIN 53438)
    F5- 600G
    Air Velocity: 0.25 Xonim
    Qalinligi  20mm
    Initial Resistance: 30pa
    Final Resistance: 450pa
    Efficiency: 99%
    Chang Holding: 500 g/sqm
    Max Temperature: 120C
    Wet 100%
    Filtrlash Class: F5 (DIN 24185)
    Flame Resistance: F-1(DIN 53438)
