Technical: Laminated composites
Ultrasonic sewing
Material: Polypropylene , Melt-Blown
Efficiency: F5 F6 F7 F8 F9
Application: Bag Filters and Panel filter
Features: Low Resistance High Efficiency

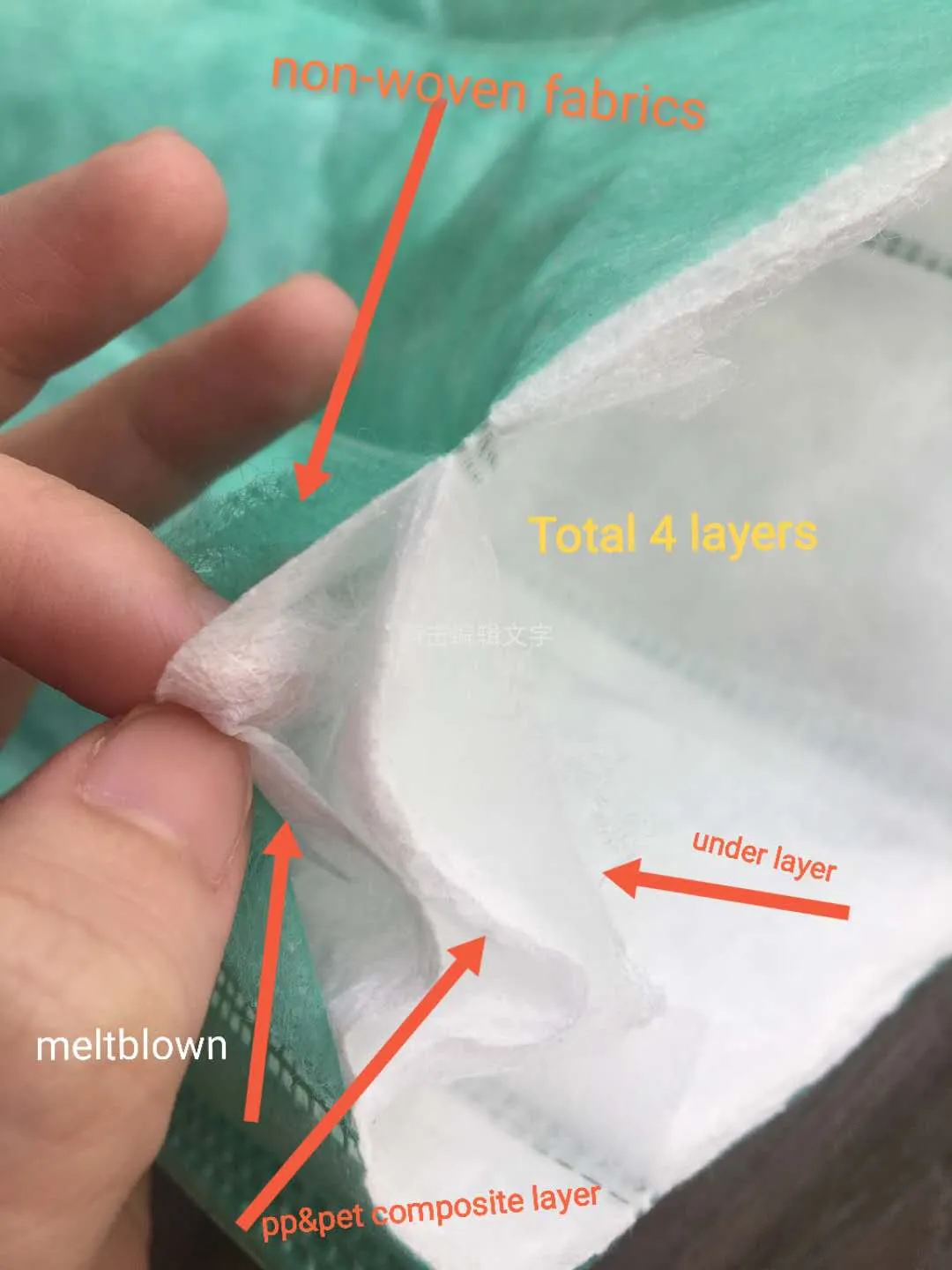

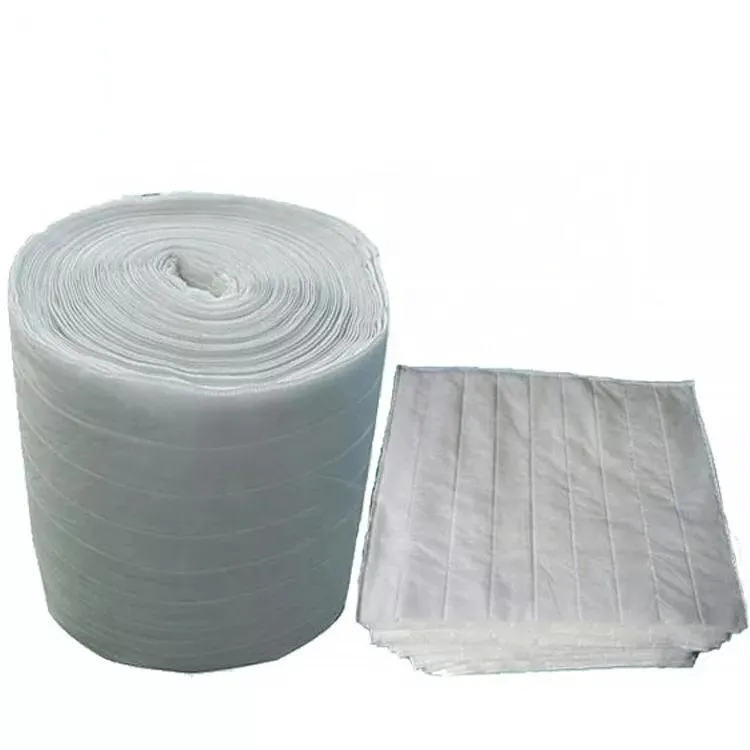

Synthetic Pocket Filter Media is for pocket filter .The media adapts to demands of multi-ayer composite air filtration media, it is correlated among melt blown, polypropylene and laminated technology, this pocket filter media can adjust thickness and material inside pocket to increase efficiency or reduce pressure drop ,so we can high dust loading and low resistance series . it is mainly used for bag filters and panel filters in general ventilation systems
Test Standard: ISO 16890 ePM 1-10 EN 779 M5-F9 ASHRAE 52.2 MERV 7-16
Media : Ultrasonically Welded Synthetic Media

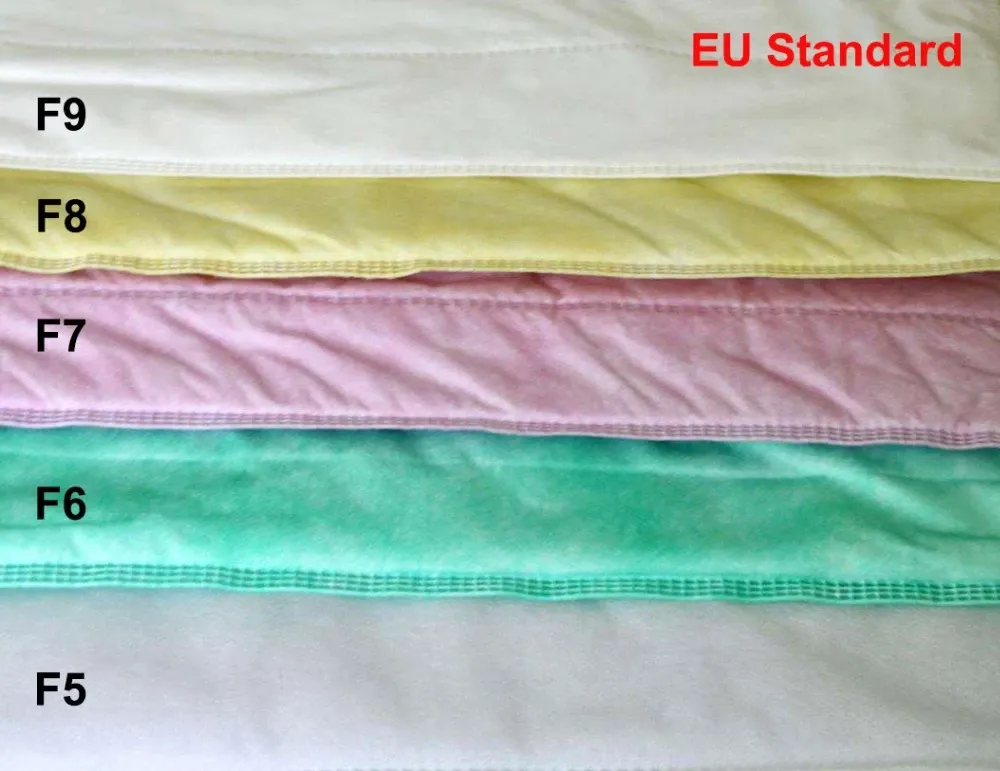

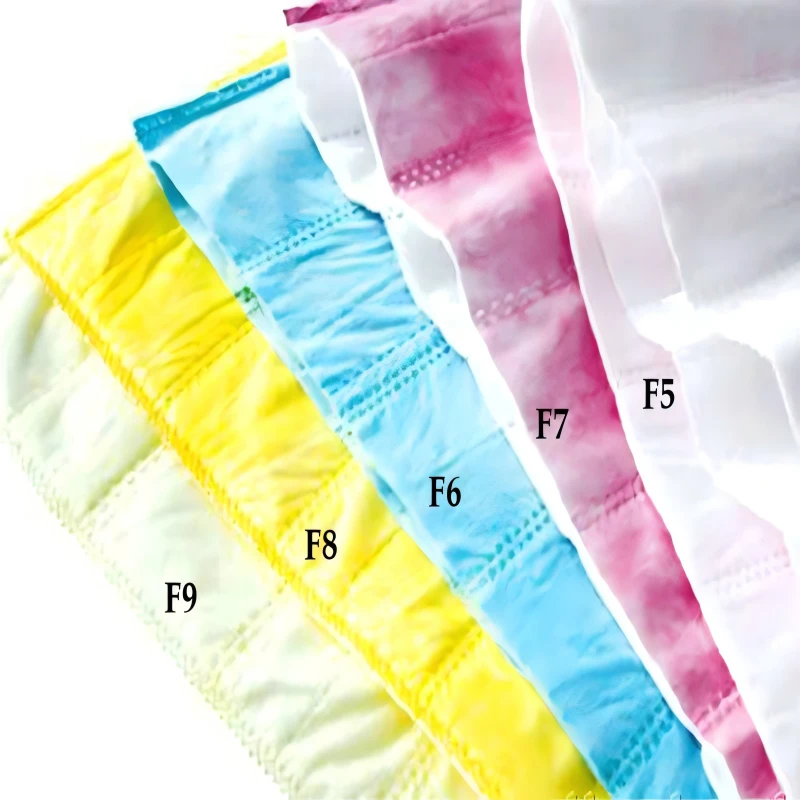

Efficiency and Media Color and Weight:

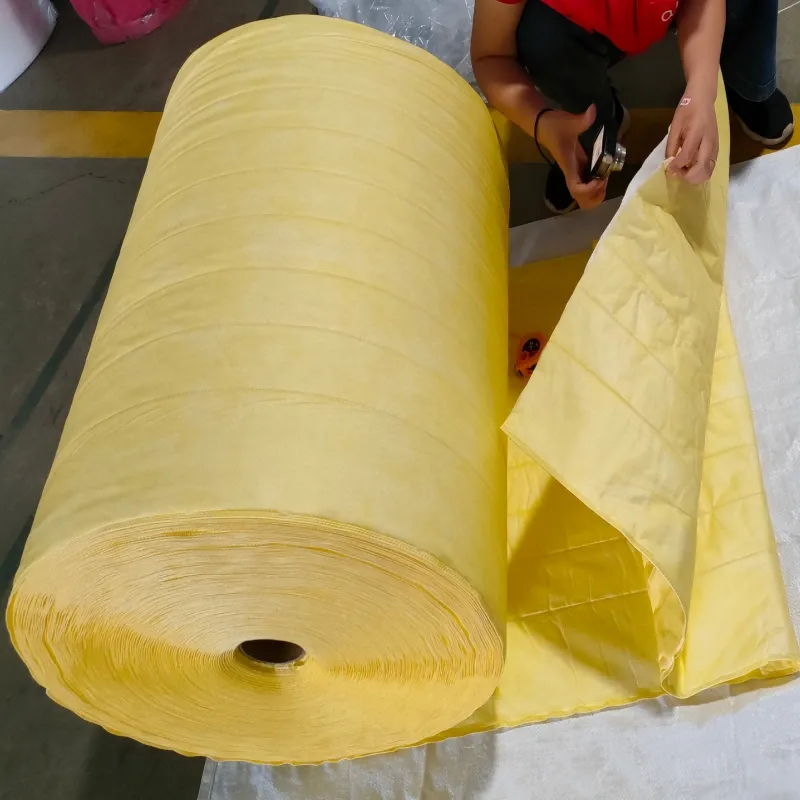

90-95% yellow 288g (PET , PP 228g ）

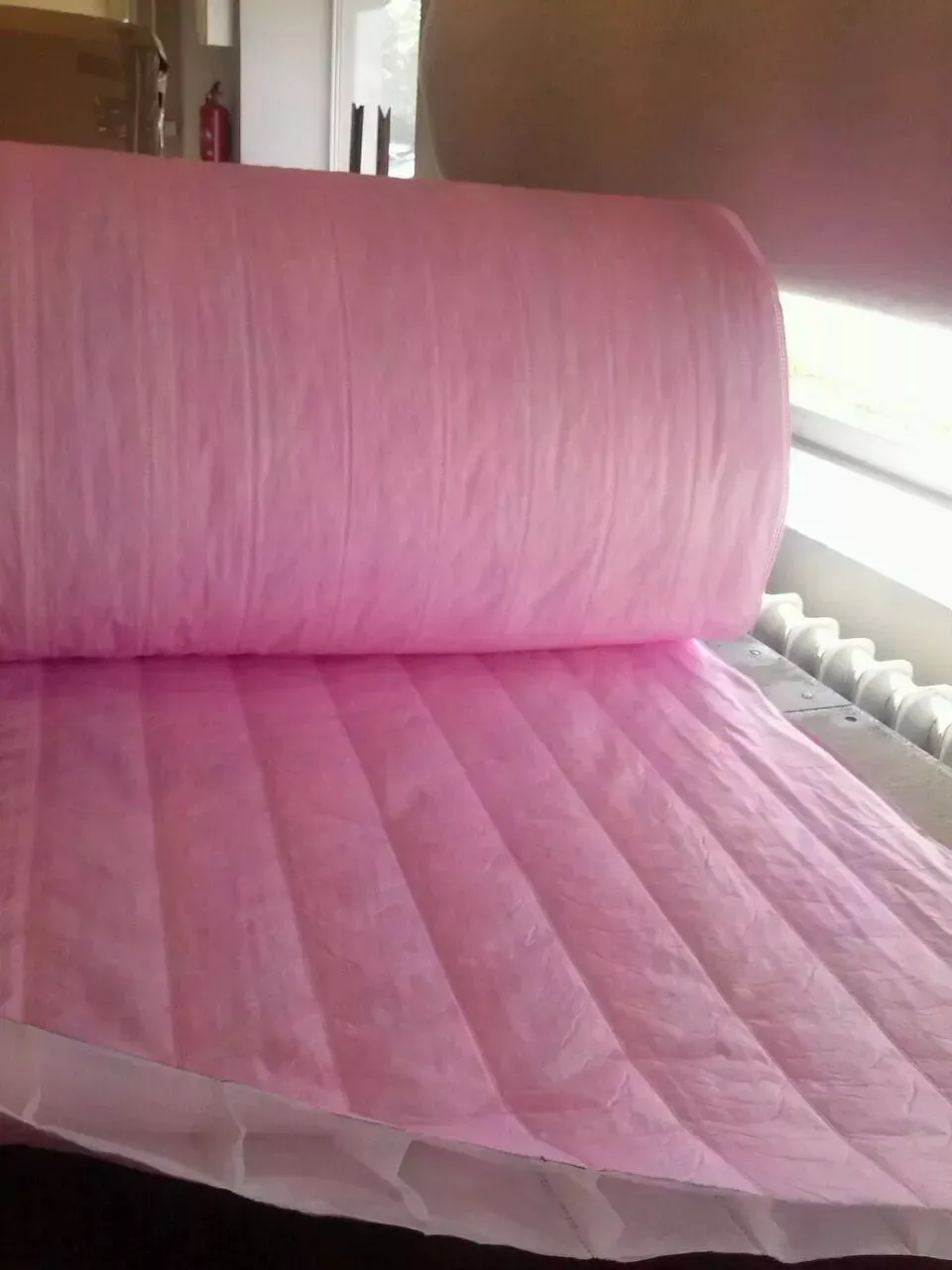

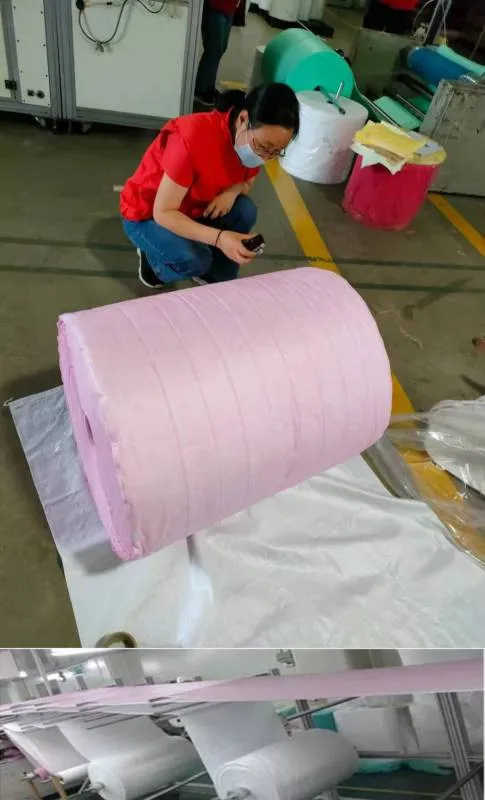

80-85% pink 272g (PET 60g, PP 212g )
60-65% orange 254g （PET 60g PP194g）

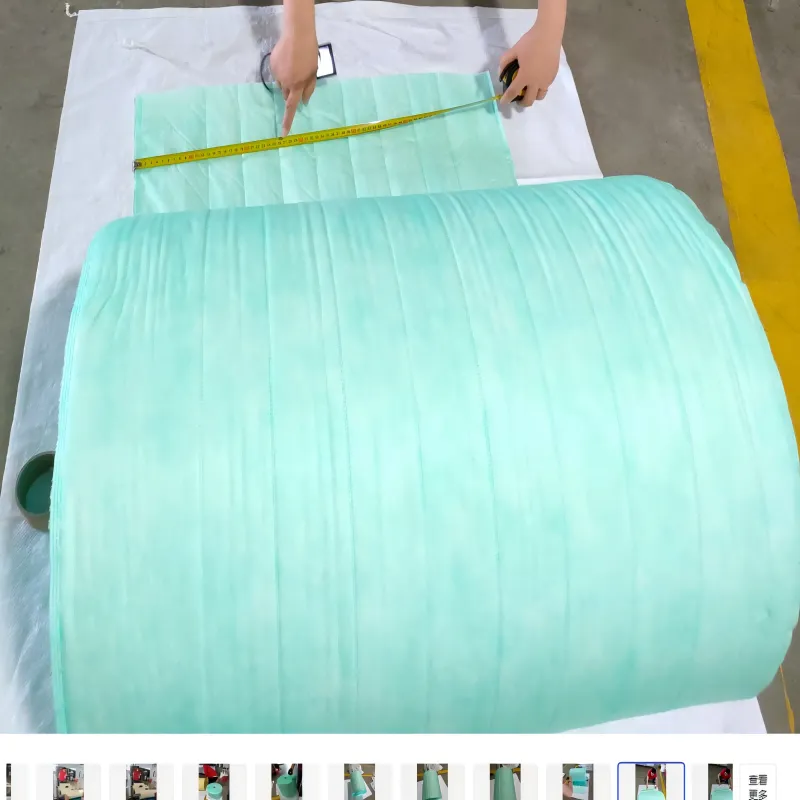

40-45% green 244g （PET 60g PP184g ）
Available Size: 360-720mm or customized

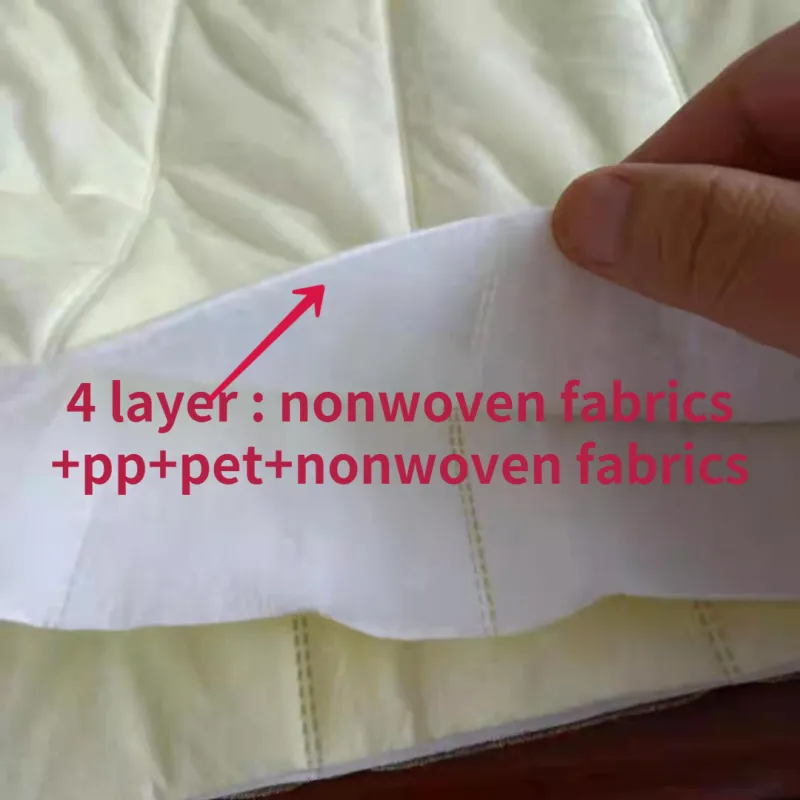

Advantage: Composite different layers together from rough filter media, fine filter media to intensive filter media, Have three-dimensional net structure, and long life-span

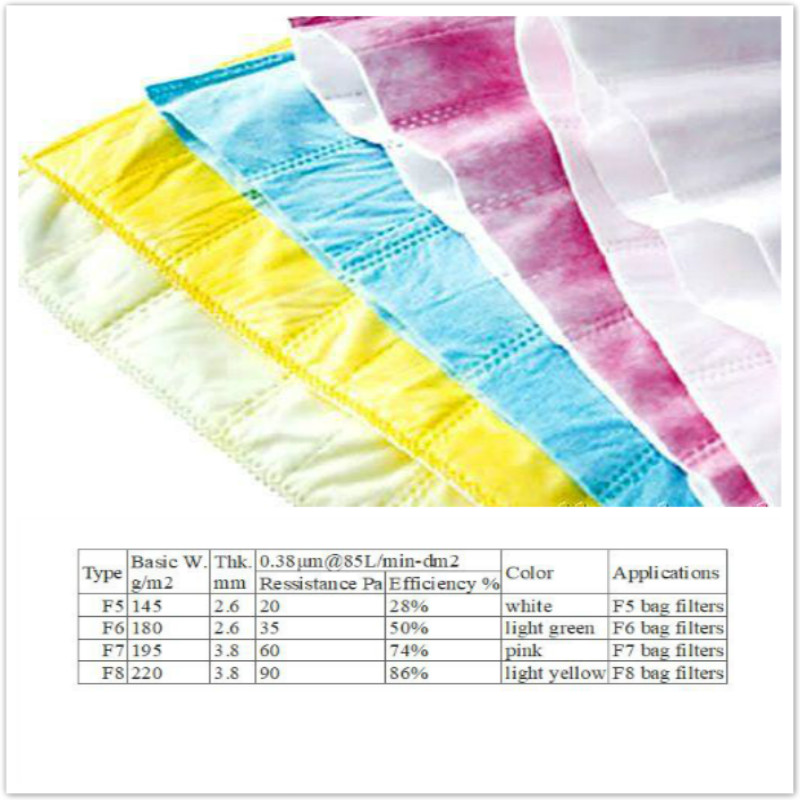

Product Technical Datas
|
Type |
Basic W. |
Thk. |
0.38µm@32L/min-dm2 |
0.38µm@32L/min-dm2 |
Color |
Applications |
||
|
Ressistance Pa |
Efficiency % |
Ressistance Pa |
Efficiency % |
|||||
|
FY-A-F5 |
114 |
3±1 |
7.0 |
50% |
23.0 |
33 |
white or light yellow |
F5 bag filters |
|
FY-A-F6 |
124 |
3±1 |
11.0 |
65% |
32.0 |
43 |
light green or orange |
F6 bag filters |
|
FY-A-F7 |
137 |
4±1 |
18.0 |
88% |
53.0 |
60 |
pink or purple |
F7 bag filters |
|
FY-A-F8 |
146 |
4±1 |
24.0 |
95% |
70.0 |
74 |
yellow |
F8 bag filters |
|
FY-A-F9 |
154 |
4±1 |
30.0 |
97% |
87.0 |
85 |
yellow |
F9 bag filters |
|
FY-B-F5 |
114 |
3±1 |
7.5 |
50% |
23.0 |
33 |
white or light yellow |
F5 bag filters |
|
FY-B-F6 |
124 |
3±1 |
11.0 |
65% |
32.0 |
43 |
light green or orange |
F6 bag filters |
|
FY-B-F7 |
140 |
4±1 |
18.0 |
88% |
53.0 |
60 |
pink or purple |
F7 bag filters |
|
FY-B-F8 |
149 |
4±1 |
24.0 |
95% |
70.0 |
74 |
yellow |
F8 bag filters |
|
FY-B-F9 |
157 |
4±1 |
30.0 |
97% |
87.0 |
85 |
yellow |
F9 bag filters |
